Component Location Overview - Components Outside Of Vehicle Interior

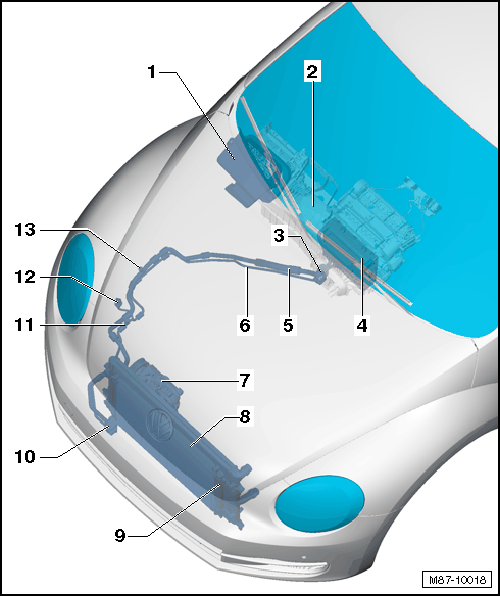

Fig 1: Identifying Passenger Compartment Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fresh Air Intake
   • Under the right plenum chamber cover
   • Removing  and installing  . Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
2. Heater and A/C Unit
   • Removing  and installing  . Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
   • Disassembling and assembling. Refer to OVERVIEW - HEATER AND A/C UNIT .
3. Expansion Valve
   • Removing  and installing  . Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
4. Evaporator
   • Removing  and installing  . Refer to EVAPORATOR, REMOVING AND INSTALLING .
5. Low Pressure Refrigerant Line
   • With evacuating and charging valve, low pressure side
6. High Pressure Refrigerant Line
   • With evacuating and charging valve, high pressure side
7. A/C Compressor
   • Removing  and installing  . Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
   • Allocation. Refer to the Parts Information.
8. Condenser with Dryer Cartridge
   • Overview. Refer to OVERVIEW - CONDENSER .
   • Condenser, removing  and installing  . Refer to CONDENSER, REMOVING AND INSTALLING .
9. Dryer Cartridge
   • Removing  and installing  . Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
10. Connection Location from Refrigerant Line to Condenser
11. Evacuating and Charging Valve, High Pressure Side
    • Removing  and installing  . Refer to EVACUATING AND CHARGING VALVE, REMOVING AND INSTALLING, LOW AND HIGH PRESSURE SIDE .
12. High Pressure Sensor -G65-
    • Removing  and installing  . Refer to High Pressure Sensor -G65-, REMOVING AND INSTALLING .
13. Evacuating and Charging Valve, Low Pressure Side
    • Removing  and installing  . Refer to EVACUATING AND CHARGING VALVE, REMOVING AND INSTALLING, LOW AND HIGH PRESSURE SIDE .
