Vehicle Interior Forced Air Extraction, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Unclip the forced air extraction vent -2- with the :3409 from the rear cross panel -1-.

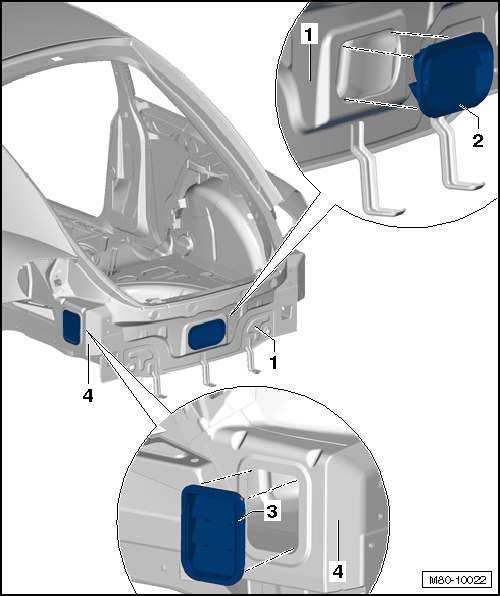

Fig 1: Identifying Forced Air Extraction Vent

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the forced air extraction vent -3- with the :3409 from the side panel -4-.
