Front Passenger Side FOOTWELL Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front passenger side footwell trim panel. Refer to Figure.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- If equipped, remove the glove compartment cooling hose from the glove compartment.

-- Remove the bolt -3-.

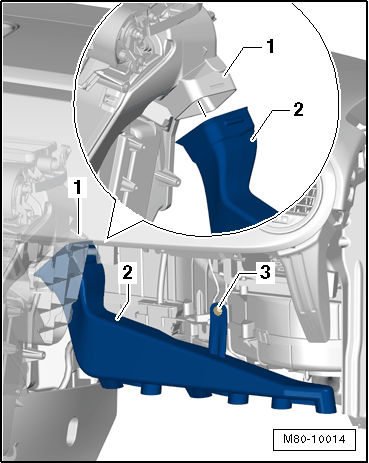

Fig 1: Identifying Front Passenger Side Footwell Vent And Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front passenger side footwell vent -2- from the heater and A/C unit -1-.
