Fresh Air Intake, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

Vehicles with Electrically Controlled A/C System

-- Remove the Air Quality Sensor -G238-. Refer to Air Quality Sensor -G238-, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Remove the cover -1- in the direction of -arrow- from the body -4-.

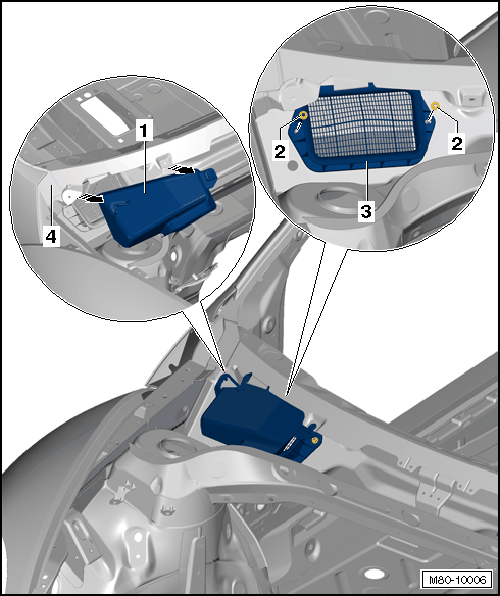

Fig 1: Identifying Fresh Air Intake And Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -2-.

-- Remove the fresh air intake -3- from the plenum chamber.
