Driver Side FOOTWELL Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bolt -3-.

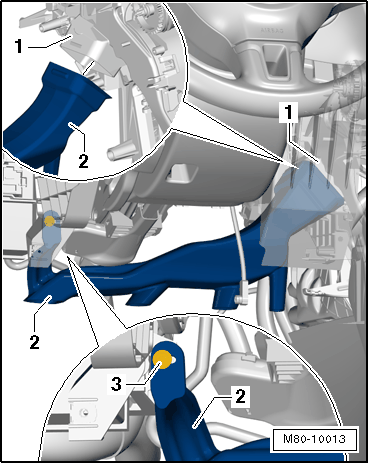

Fig 1: Identifying Driver Side Footwell Vent And A/C Unit
GWWM80-10013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the driver side footwell vent -2- from the heater and A/C unit -1-.
