Defrost Vent Intermediate Piece, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the clips -2-.

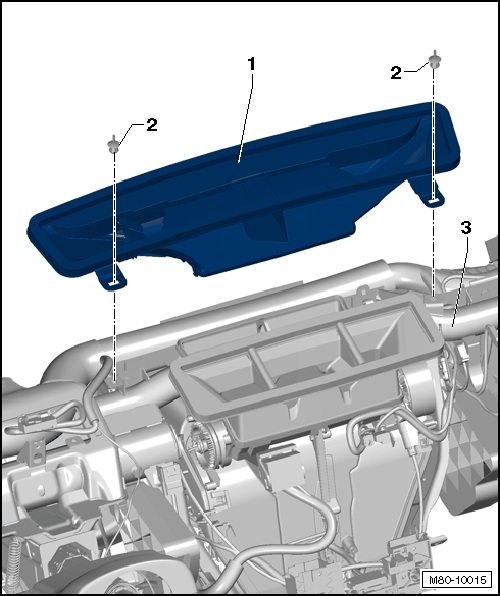

Fig 1: Identifying Intermediate Piece For Defrost Air Vent And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the intermediate piece for the defroster vent -1- from the center tube for the instrument panel -3-.
