Center Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Loosen the frame -2- with the :3409 from the instrument panel retainers -1-.

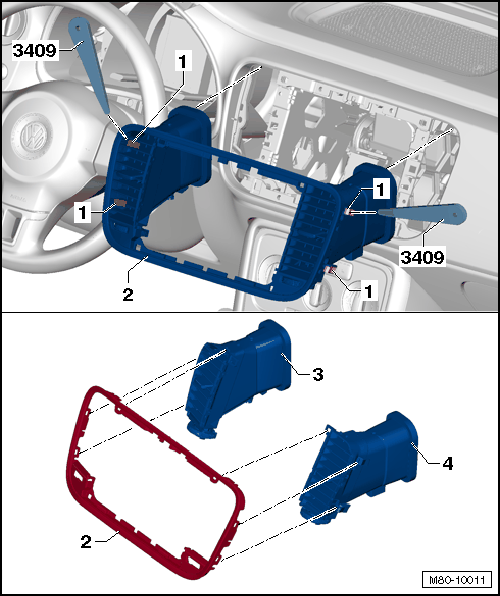

Fig 1: Identifying Instrument Panel Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center vents -3 and 4- along with the frame -2- from the instrument panel.

-- Loosen the left and right center vents -3 and 4- from the frame clips -2- and remove them from the frame.
