Air Guide For Center Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Lay the instrument panel on a cushioned surface.

-- Remove the air duct channel/connection location for the side air vents. Refer to AIR DUCTS, REMOVING AND INSTALLING .

-- Remove the bolts -1-.

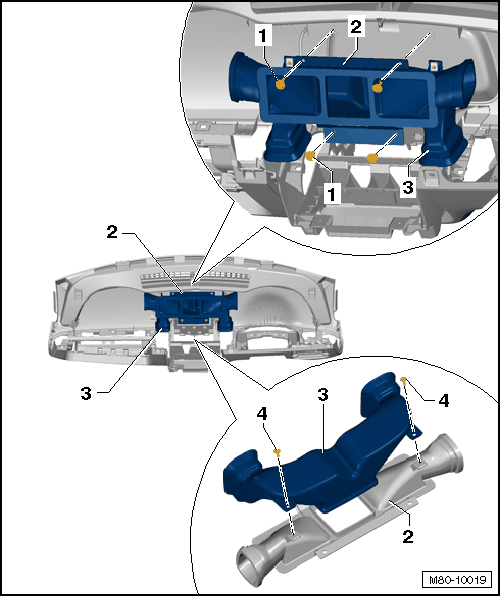

Fig 1: Identifying Air Vent Intermediate Pieces, Center Air Vent, Side Vent And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the intermediate pieces for the vent -2 and 3- together with the instrument panel.

-- Remove the bolts -4-.

-- Disconnect the intermediate piece for the center vent -3- and the intermediate piece for the side vent -2- from one another.
