Air Ducts, Removing And Installing: Removing

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Lay the instrument panel on a cushioned surface.

-- Remove the bolts -3-.

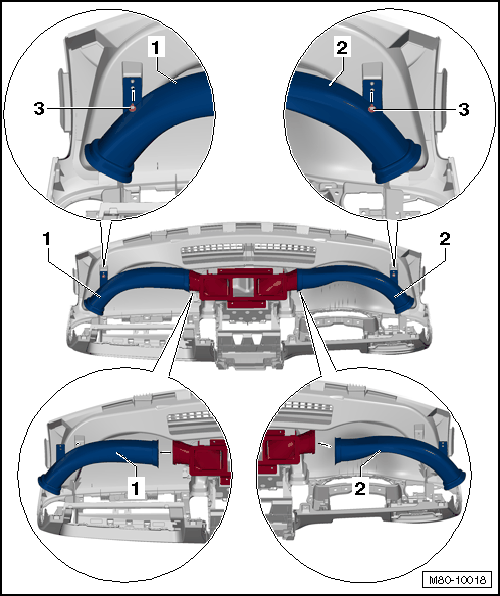

Fig 1: Identifying Air Guide Channels And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct channels -1 and 2- from intermediate piece for the vent.
