Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Unclip the Sunlight Photo Sensor -G107- -2- using the :3409  from the instrument panel -1- -arrows-.

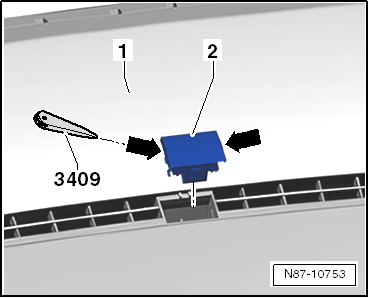

Fig 1: Identifying Sunlight Photo Sensor
GWWN87-10753Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Sunlight Photo Sensor -G107- -2-.
