Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Right Footwell Vent Temperature Sensor -G262- -1-.

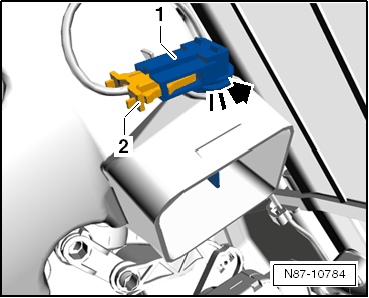

Fig 1: Identifying Right Footwell Vent Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Right Footwell Vent Temperature Sensor -G262- -1- 90° in the direction of -arrow- and remove it from the housing.
