Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Reach through the front bumper air grille -3- and unclip the Outside Air Temperature Sensor -G17- -1- from the retainer.

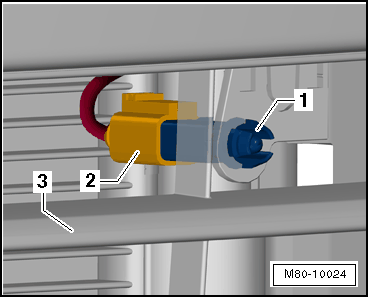

Fig 1: Identifying Connector And Outside Air Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Outside Air Temperature Sensor -G17- -1- from the air grille -3-.

-- Disconnect the connector -2- on the Outside Air Temperature Sensor -G17- -1-.
