Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the side instrument panel cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -3- from the Left Vent Temperature Sensor -G150- -2-.

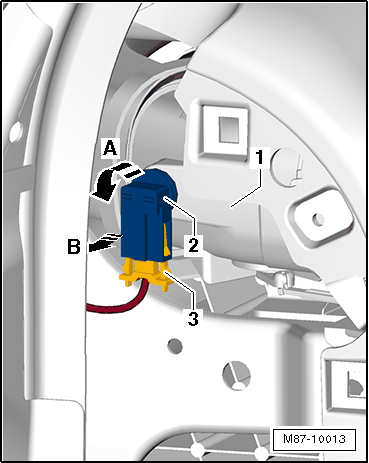

Fig 1: Identifying Left Vent Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Left Vent Temperature Sensor -G150- -2-, 90° in the direction of -arrow A- and remove it from the side vent -1- in the direction of -arrow B-.
