Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Left Footwell Vent Temperature Sensor -G261- -1-.

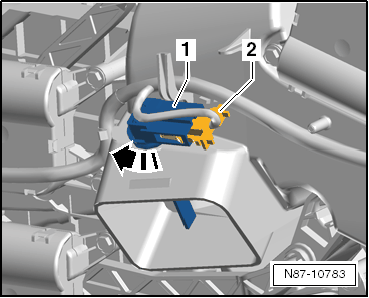

Fig 1: Identifying Left Footwell Vent Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Left Footwell Vent Temperature Sensor -G261- -1- 90° in the direction of -arrow- and remove it from the housing.
