Air Quality Sensor -G238-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Air Quality Sensor -G238- is installed at the right front on the air intake grille in the plenum chamber.

The Air Quality Sensor -G238- contains a highly sensitive electronic component that can be damaged if it comes in direct contact with solvents, fuels or chemicals.

-- Remove the right plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the cover over the fresh air intake.

-- Disconnect the connector -2- from the Air Quality Sensor -G238- -1-.

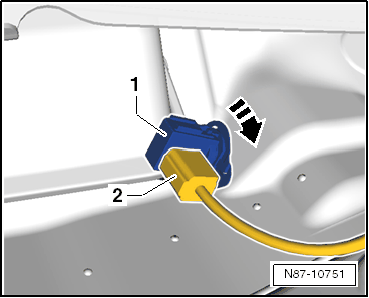

Fig 1: Identifying Air Quality Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the Air Quality Sensor -G238- -1- and turn it 90° out of the bracket.
