Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING: Removing

-- Switch off the ignition.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the right front footwell center console trim panel. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Disconnect the connector -4- from the Right Temperature Control Door Motor -V159- -3-.

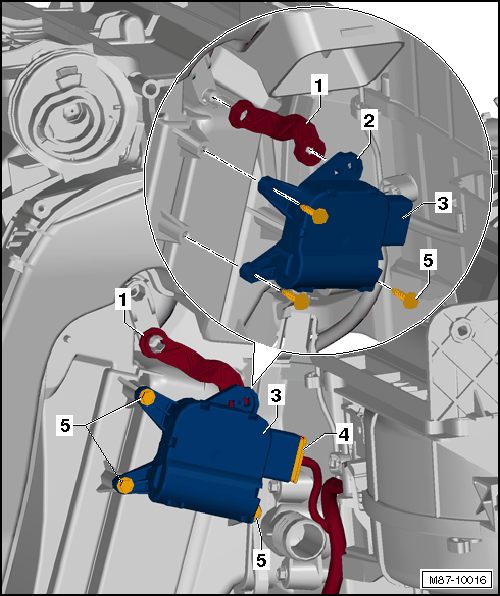

Fig 1: Identifying Adjusting Lever, Temperature Regulator Door Motor And Connecting Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -5-.

-- Loosen the connecting rod -1- on the temperature control door.

-- Remove the Right Temperature Control Door Motor -V159- -3- and the connecting rod -1- from the heater and A/C unit.

-- Disconnect the adjusting lever -2- for the Right Temperature Control Door Motor -V159- -3- from the connecting rod -1-.
