Front Air Distribution Door Motor -V426-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Front Air Distribution Door Motor -V426- -1-.

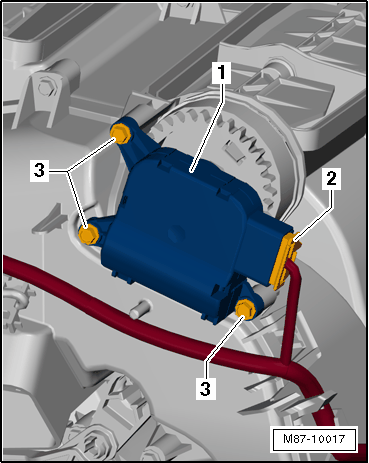

Fig 1: Identifying Front Air Distribution Door Motor And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the Front Air Distribution Door Motor -V426- -1- from the heater and A/C unit.
