Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

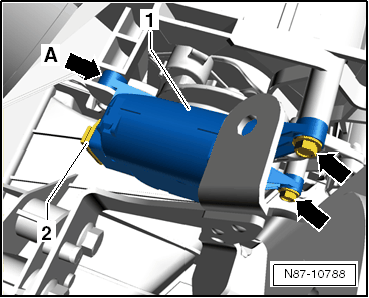

Fig 1: Identifying Fresh Air/Recirculating Air/Back Pressure Door Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Fresh Air/Recirculating Air/Back Pressure Door Motor -V425- -1- 15° out of the guide -A- and remove from the heater and A/C unit.

-- Disconnect the connector -2-.

NOTE:

The position of the Fresh Air/Recirculating Air/Back Pressure Door Motor -V425- may not be changed.
