Fresh Air/Recirculating Air/Back Pressure Door Adjuster, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .

-- Loosen the retainers -arrows- from the adjusting lever -1-.

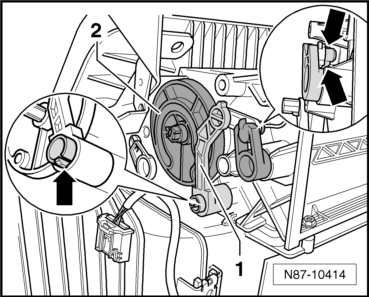

Fig 1: Identifying Curved Washer And Adjusting Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the adjusting lever -1- from the curved washer -2-.

-- Remove the curved washer -2- from the air intake housing.
