Fresh Air/Recirculating Air/Back Pressure Door Adjuster, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

When installing the curved washer, make sure the guide pin for the air flow door adjusting lever is seated in the groove.

-- Install the curved washer -1- on the air intake housing.

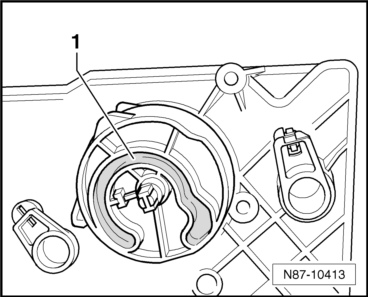

Fig 1: Identifying Curved Washer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Make sure the guide pin for the recirculation air door adjusting lever is seated in the curved washer groove.

-- Mount and latch the recirculation air door adjusting lever.
