Component Location Overview - Front Adjustment Motors, CLIMATRONIC

WARNING: This page is about a different variant/trim than selected.

NOTE:

View -A- shows the arrangement of the control motors on the left side of the heating and A/C unit.

View -B- shows the arrangement of the control motors on the right side of the heating and A/C unit.

View -C- shows the arrangement of the control motors on the air intake grille for the heater and A/C unit.

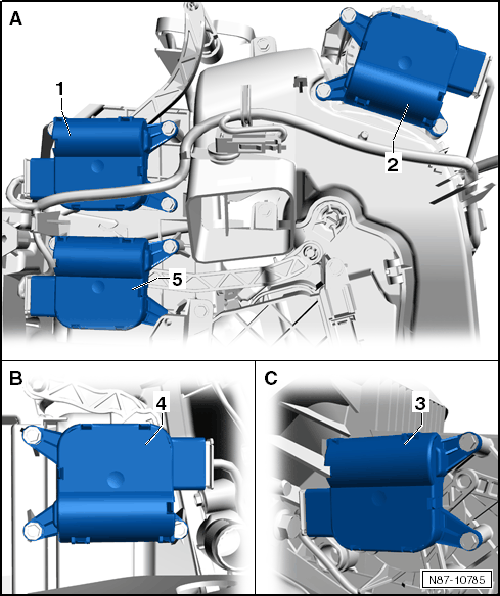

Fig 1: Exploded View Of Door Motors, Climatronic Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Defroster Door Motor -V107-
- With the Defroster Door Motor Position Sensor -G135-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing . Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
Front Air Distribution Door Motor -V426-
- With the Front Air Distribution Door Motor Position Sensor -G642-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing . Refer to Front Air Distribution Door Motor -V426-, REMOVING AND INSTALLING .
Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- With the Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing . Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
Right Temperature Control Door Motor -V159-
- With Right Temperature Control Door Position Sensor -G221-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing . Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
Left Temperature Control Door Motor -V158-
- With the Left Temperature Control Door Position Sensor -G220-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing . Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
