Steering Wheel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Before performing work on the electrical system and removing the steering wheel, the following conditions must be met:

Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
The wheels must be in the straight position.

The airbag system may fail during future operation if these warnings are not followed!

-- Move the steering column to the center height position.

-- Bring wheels in the straight position.

NOTE:

Removal and installation of steering wheel must take place in center position (wheels in straight-ahead position).

-- Remove the bolt -1-.

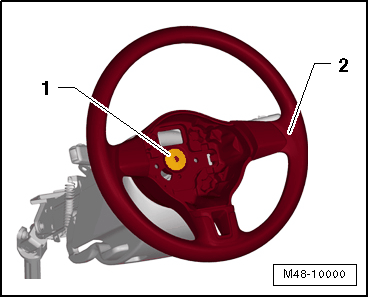

Fig 1: Identifying Steering Wheel And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the position of the steering wheel/steering column.

-- Remove the steering wheel -2- from the steering column.
