Steering Gear, Hydraulic Steering Gear, Servicing: Notes
WARNING: This page is about a different variant/trim than selected.

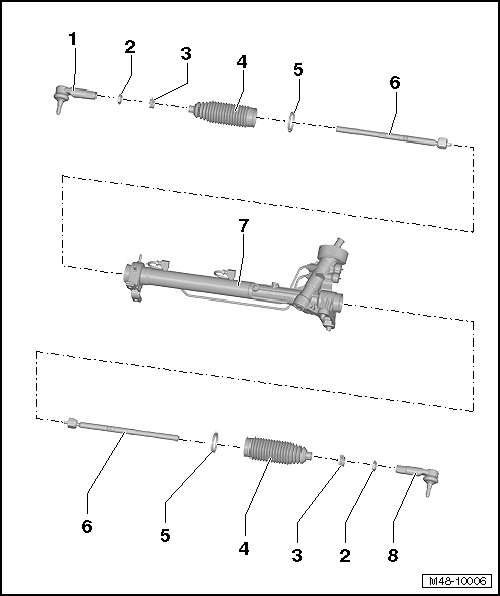

- Right Tie Rod End
- Identified with "A". Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side.
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING
- Checking. Refer to Checking Play, Fastening and Joint Boots of Tie Rod Ends .
- Installation position. Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side. .
- Allocation. Refer to the Parts Information.
- Nut
- 70 Nm
- Clamp
- Boot
- Must not be twisted after toe is adjusted
- To replace, remove steering gear
- Clamp
- Replace
- Tensioning. Refer to Installing - Tighten the new clamp using the : VAS6199 to the extent depicted in the illustration. .
- Tie Rod
- 100 Nm
- Removing and installing. Refer to TIE ROD, REMOVING AND INSTALLING
- Power Steering Gear
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to STEERING GEAR, REMOVING AND INSTALLING, ELECTRO-MECHANICAL STEERING GEAR
- Left Tie Rod End
- Identified with "B". Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side.
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING
- Checking. Refer to Checking Play, Fastening and Joint Boots of Tie Rod Ends .
- Installation position. Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side. .
- Allocation. Refer to the Parts Information.
