Steering Gear, Electro-Mechanical Steering Gear, Servicing: Notes

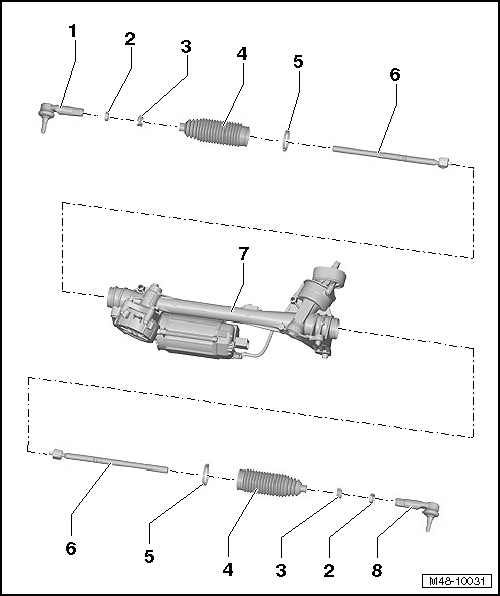

Fig 1: Identifying Electromechanical Steering Gear Assembly And Component Parts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Tie Rod End
   • Identified with "A". Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side.
   • Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING
   • Checking. Refer to Checking Play, Fastening and Joint Boots of Tie Rod Ends .
   • Installation position. Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side. .
   • Allocation. Refer to the Parts Information.
2. Nut
   • 70 Nm
3. Clamp
4. Boot
   • Must not be twisted after toe is adjusted
   • Removing and installing. Refer to BOOT, REMOVING AND INSTALLING
5. Clamp
   • Always replace
   • Tensioning. Refer to Installing - Tighten the new clamp using the : VAS6199 to the extent depicted in the illustration. .
6. Tie Rod
   • 100 Nm
   • Removing and installing. Refer to TIE ROD, REMOVING AND INSTALLING
7. Power Steering Gear
   • Allocation. Refer to the Parts Information.
   • Removing and installing. Refer to STEERING GEAR, REMOVING AND INSTALLING, ELECTRO-MECHANICAL STEERING GEAR
8. Left Tie Rod End
   • Identified with "B". Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side.
   • Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING
   • Checking. Refer to Checking Play, Fastening and Joint Boots of Tie Rod Ends .
   • Installation position. Refer to TIE ROD, REMOVING AND INSTALLING - Make sure the correct tie rod end is installed on each side. .
   • Allocation. Refer to the Parts Information.
