Steering Gear, Hydraulic Steering Gear, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal. Note the following:

-- Replacing the seal -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold up the seal -1- over the collar of the steering gear -2- so that the rubber lip encloses the collar all around -arrows-.

-- Check the seal -1- for secure fit.

-- Coat the seal from above with lubricant for example soft soap.

NOTE:

After attaching steering gear to the universal joint, make sure that seal on steering gear is positioned on the mounting plate without and kinks and is sealed correctly. The opening to the footwell must be sealed correctly. Water leak and/or noises may be the result.

Make sure sealing surfaces are clean.

-- Always make sure the intermediate plate -1- is installed between the subframe -2- and the body.

Fig 1: Identifying Intermediate Plate Installed Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Insert the long side of the intermediate plate -1- so that it is perpendicular to the direction of travel. The tabs -arrows- must lock into the subframe -2-.

Use new O-rings for hose/line connections.
Replace the tie rod boots when replacing the power steering gear.

Pay Attention to the Installation Position for the Hydraulic Lines on the Steering Gear

Expansion Hose with Strap.

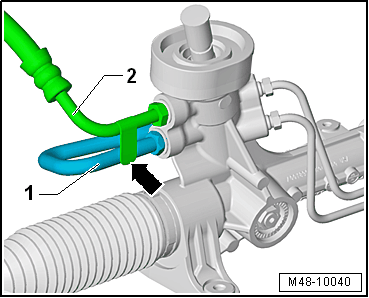

Fig 2: Identifying Return Hose And Strap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The strap recess -1- on the expansion hose must be supported by the steering gear -arrow-.
The strap -2- on the return hose must be supported on the expansion hose.

Expansion Hose without a Strap

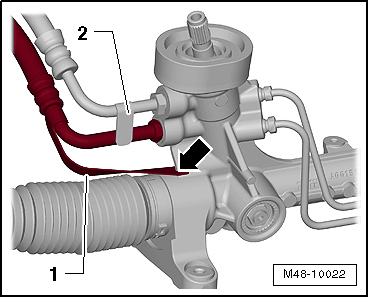

Fig 3: Locating Extension Hose (Without Strap)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The expansion hose -1- must be supported by the steering gear -arrow-.
The strap -arrow- on the return hose -2- must be supported by the expansion hose -1-.

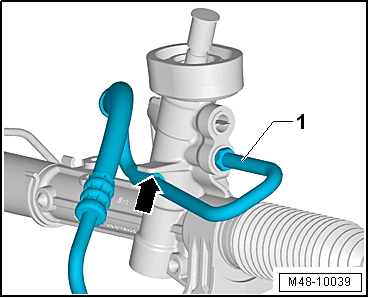

Fig 4: Locating Extension Hose (With Strap)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten nuts -arrows-.

Fig 5: Identifying Nuts, Tightening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Tighten the nuts -arrows- in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

-- Install and tighten the noise insulation. Refer to OVERVIEW - NOISE INSULATION for the tightening specifications.

-- Install the front wheels and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
