Overview - Steering Gear, Hydraulic Steering Gear

WARNING: This page is about a different variant/trim than selected.

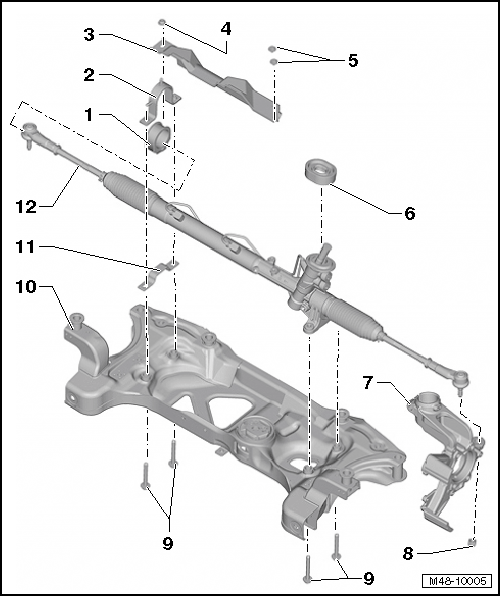

Fig 1: Exploded View Of Steering Gear, Hydraulic Steering Gear
GWWM48-10005Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rubber Bushing
  2. Clamp
    • Always replace if removed
  3. Heat Shield
  4. Nut
    • 6 Nm
  5. Bolt
    • 23 Nm
  6. Seal
  7. Wheel Bearing Housing
  8. Nut
    • 20 Nm and 90° additional turn
    • Always replace if removed
  9. Bolt
    • 50 Nm and 90° additional turn
    • Always replace if removed
  10. Subframe
  11. Washer
  12. Power Steering Gear
