Steering Gear On Subframe Tightening Sequence
WARNING: This page is about a different variant/trim than selected.

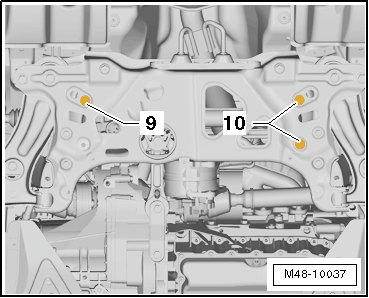

- Pre tighten the bolts -10- and -9- after each other by hand.
- Starting from the back at -10-, pre-torque the bolts after each other to 10 Nm.
- Tighten the bolts -10- and -9- one after the other to the prescribed tightening specification.
