Overview - Steering Column, RHD

WARNING: This page is about a different variant/trim than selected.

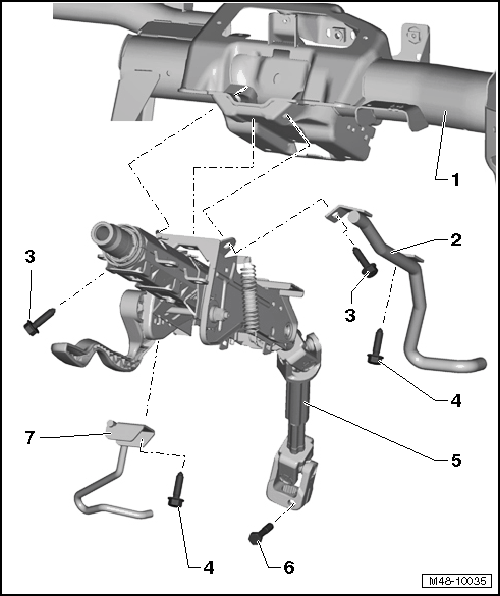

Fig 1: Exploded View Of Steering Column (RHD)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe with mounting bracket
Steering Column
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING, RHD
Brake Pedal Crash Brace
- Allocation. Refer to the Parts Information.
Bolt
- Note the tightening sequence. Refer to Installing - Tighten the bolts -1-, -2-, -3- and -4- one after the other to the tightening specification. .
- 20 Nm
Bolt
- Note the tightening sequence. Refer to Installing - Tighten the bolts -1-, -2-, -3- and -4- one after the other to the tightening specification. .
- 20 Nm
Clutch Pedal Crash Bolster
- Allocation. Refer to the Parts Information.
Bolt
- Always replace if removed
- 30 Nm
