Power Steering Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

For all repair work, especially in the engine compartment due to the tight working conditions, observe the following:

Route lines of all types (for example for fuel, hydraulic, EVAP canister system, coolant and refrigerant, brake fluid, vacuum) correctly. The original path must be followed.
Make sure that there is sufficient clearance to all moving or hot components.

-- Clamp off suction and return hose on the power steering fluid reservoir.

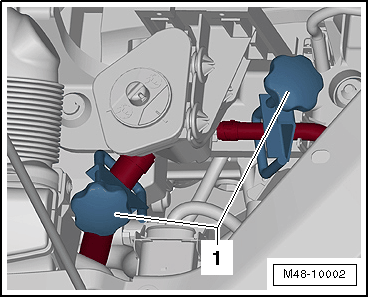

Fig 1: Identifying Clamps

GWWM48-10002

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

: 3094

-- Loosen the bolts -arrows-.

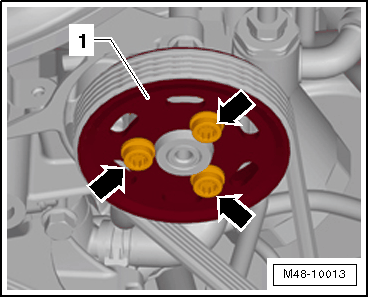

Fig 2: Identifying Pulley Bolts

GWWM48-10013

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ribbed belts. Refer to RIBBED BELT, REMOVING AND INSTALLING (CPLA, CPPA, CPKA, CPRA) or RIBBED BELT, REMOVING AND INSTALLING (DDSA, DDSB) .

-- Remove the bolts -arrows- and the belt pulley -1-.

-- Remove the nut -1- and the pressure line from the power steering pump.

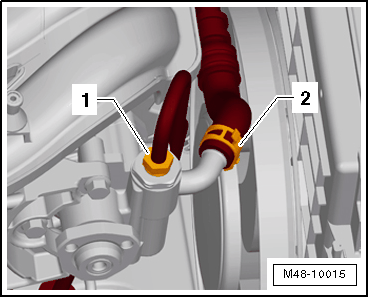

Fig 3: Identifying Hose Clamp And Pump Retainer

GWWM48-10015

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the spring clamp and remove the suction hose -2- from the power steering pump.

-- Remove bolts -arrows- and remove power steering pump -1- from bracket.

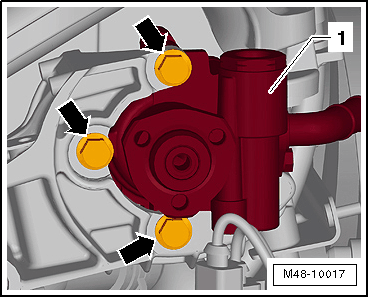

Fig 4: Identifying Power Steering Pump And Mounting Bolts

GWWM48-10017

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
