Overview - Hydraulic Lines And Reservoir, Reservoir 5-Cylinder Gasoline Engine

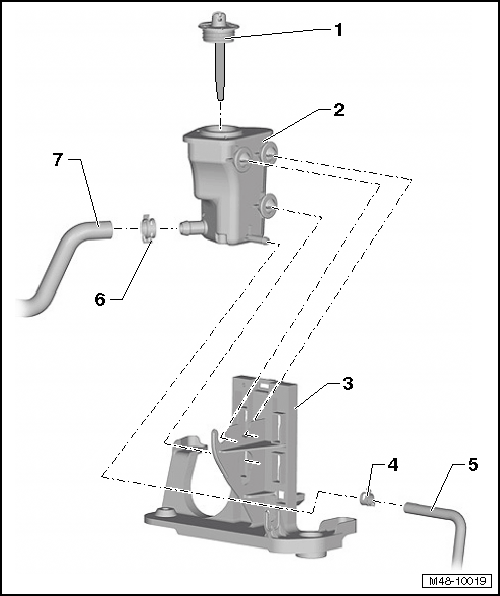

Fig 1: Exploded View Of Hydraulic Lines and Reservoir (5-Cylinder Gasoline Engine)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cap with Dipstick
   • Power steering, checking fluid level. Refer to POWER STEERING FLUID LEVEL, CHECKING .
2. Reservoir
3. Bracket
   • For reservoir
4. Clamp
5. Return Hose
6. Suction Hose
7. Clamp
