Overview - Hydraulic Lines And Reservoir, Hydraulic Lines, 5-Cylinder Gasoline Engine

WARNING: This page is about a different variant/trim than selected.

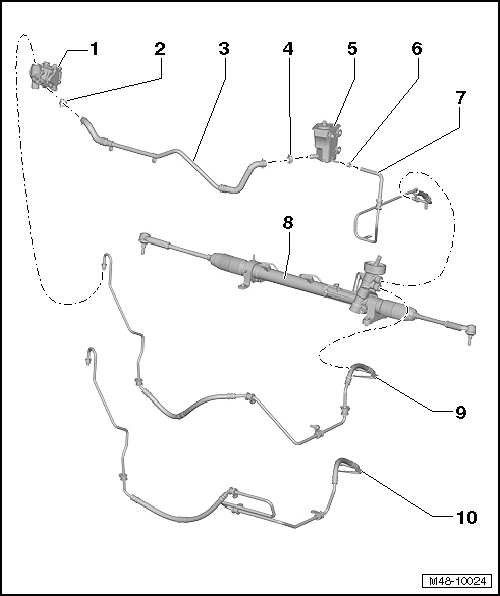

Fig 1: Exploded View Of Power Steering Lines (5-Cylinder Gasoline Engine)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Power Steering Pump
Clamp
Suction Hose
Clamp
Reservoir
Clamp
Return Hose
Steering Gear
Expansion Hose
- For vehicles with an automatic transmission
- Routing the lines on the automatic transmission. Refer to Fig 3
Expansion Hose
- For vehicles with manual transmission
- Routing the lines on the manual transmission. Refer to Fig 2

Expansion Hose Routing on the Manual Transmission arrows

Fig 2: Expansion Hose Routing On Manual Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Expansion Hose Routing on the Automatic Transmission arrows

Fig 3: Expansion Hose Routing On Automatic Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
