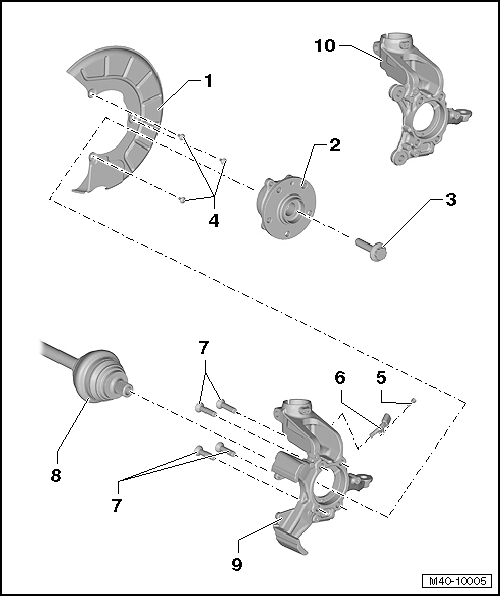

Overview - Wheel Bearing
WARNING: This page is about a different variant/trim than selected.
- Cover Plate
- Wheel Hub with Wheel Bearing
- Removing and installing . Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING
- The ABS sensor ring is installed in the wheel hub
- There are different versions.
- Allocation. Refer to the Parts Information.
- Bolt
- 200 Nm +180°
- Replace after removing.
- Loosening and tightening. Refer to DRIVE AXLE BOLT, LOOSENING AND TIGHTENING .
- Bolt
- 12 Nm
- Hex Socket Bolt
- 8 Nm
- Left Front ABS Wheel Speed Sensor -G47- / Right Front ABS Wheel Speed Sensor -G45-
- Before inserting wheel speed sensor, clean inner surface of bore hole and coat with Grease:G 000 650 .
- Bolt
- 70 Nm +90°
- Replace after removing
.
Vehicle Must Not Be Sitting on the Wheels When Tightening or Loosening.
- Drive Axle
- Removing and installing . Refer to DRIVE AXLE, REMOVING AND INSTALLING, CV JOINT VL 100 AND VL 107
- Wheel Bearing Housing
- Removing and installing . Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING
- With integrated brake carrier
- If the wheel bearing housing is replaced, the alignment must be checked afterwards. Refer to AXLE ALIGNMENT .
- Allocation. Refer to the Parts Information.
- Wheel Bearing Housing
- Removing and installing . Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING
- With brake carrier bolted on
- If the wheel bearing housing is replaced, the alignment must be checked afterwards. Refer to AXLE ALIGNMENT .
- Allocation. Refer to the Parts Information.
