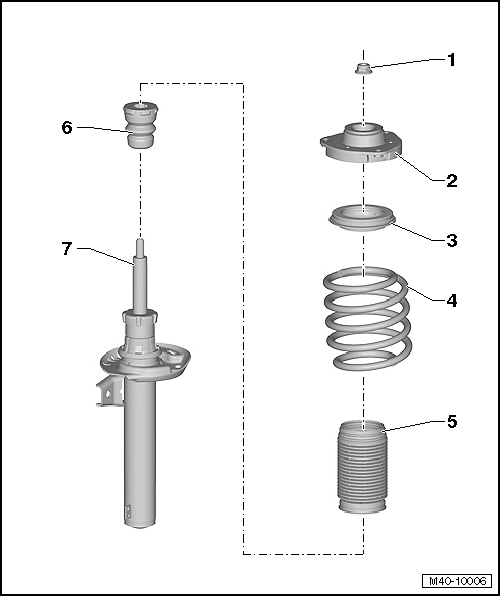

Overview - Suspension Strut And Upper Control Arm
WARNING: This page is about a different variant/trim than selected.
- Nut
- 60 Nm
- Replace after removing .
- Self-locking
- Strut Mount
- Note the installation position. Refer to One of two markings on the spring plate must point in the direction of travel. .
- Deep-Groove Ball Bearing
- Coil Spring
- Removing and installing . Refer to Coil Spring, Removing
- Note the color code
- Allocation. Refer to the Parts Information.
- Surface of spring coil may not be damaged
- Protective Cover
- Stop Buffer
- Shock Absorber
- Can be replaced individually
- Allocation. Refer to the Parts Information.
