Special Tools

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Hose Clamps - Up To 25 mm:3094
Puller - Ball Joint: T10187
Torque Wrench 1331 5-50Nm: VAG1331
Torque Wrench 1332 40-200Nm: VAG1332
Engine and Gearbox Jack: VAS6931
Shop Crane - Drip Tray: VAS6208

Fig 2: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Bearing Installer - Wheel Hub/Bearing Kit: T10205
Torque Wrench 1332 40-200Nm: VAG1332
Hydraulic Press: VAS6178
Pneumatic/Hydraulic Foot Pump: VAS6179
Rubber Bushing Assembly Device Kit: VAS6779A

Fig 3: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench 1332 40-200Nm: VAG1332
Spreader Tool:3424
Engine and Gearbox Jack: VAS6931
Engine/Gearbox Jack Adapter - Wheel Hub Support: T10149

Fig 4: -- Identifying Special Tools - Axle Shaft Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench 1332 40-200Nm: VAG1332
Spring Compressor Kit - Spring Tensioner: VAG1752/1
Spring Compressor Kit - Spring Retainer w/Inserts: VAG1752/4
Spring Compressor Kit - Strut Clamping Block: VAG1752/20
Shock Absorber Set: T10001
Commercially Available Ratchet

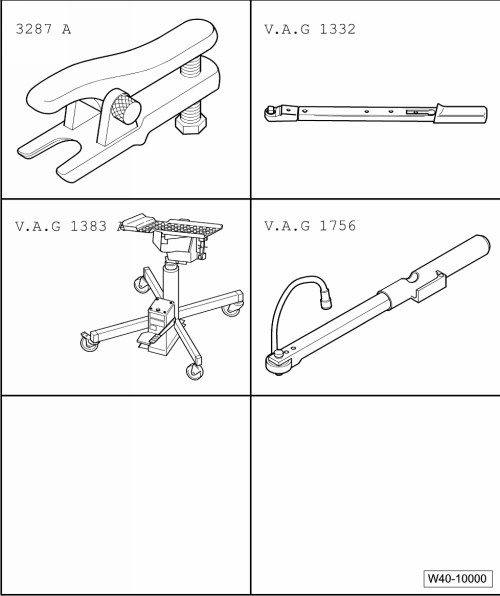

Fig 5: Identifying Special Tools -- Ball Joint, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Puller - Ball Joint:3287A
Torque Wrench 1332 40-200Nm: VAG1332
Engine and Gearbox Jack: VAS6931
Digital Torque Wrench: VAG1756A

Fig 6: Identifying Special Tools -- Bonded Rubber Bushing For Control Arm, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Wishbone Rubber Mount Assembly Tool: T10219
Press Plate: VW402
Press Piece - Rod: VW411

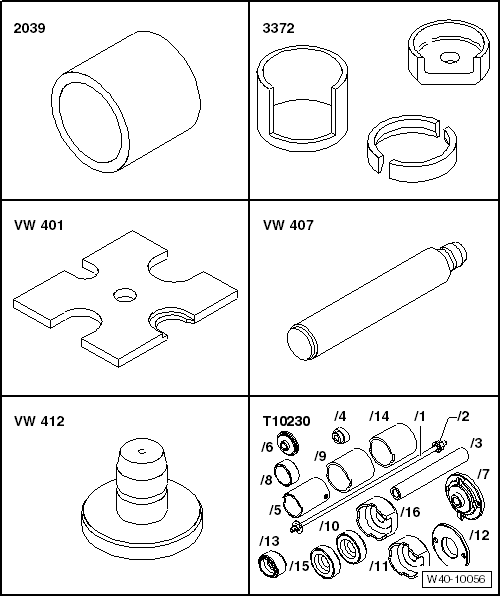

Fig 7: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Bearing Installer - Front Wheel Bearing:2039
Front Subframe Mount Kit:3372
Press Plate: VW401
Press Piece - Rod: VW407
Press Piece - Multiple Use: VW412
Hydraulic Press - Bushing Assembly Tool Kit : T10230
Press Piece - Rear Track Control Arm: T10453

Fig 8: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Puller - Ball Joint:3287A
Spreader Tool:3424
Puller - Ball Joint: T10187
Torque Wrench 1332 40-200Nm: VAG1332
Engine and Gearbox Jack: VAS6931
Digital Torque Wrench: VAG1756A

Fig 9: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Drive Axle Wedge Tool: T10161
Drive Shaft Remover: T10520
Torque Wrench 1332 40-200Nm: VAG1332

Fig 10: Identifying Special Tools - Axle Shaft Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Press Plate: VW401
Press Plate: VW402
Press Piece - Rod: VW408A
Press Piece - Rod: VW411
Press Piece - 37mm: VW416B
Press Piece - Multiple Use: VW447H

Fig 11: Identifying Special Tools (Circlip Pliers VW161A)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Circlip Pliers: VW161A
Torque Wrench 1331 5-50Nm: VAG1331
Torque Wrench 1332 40-200Nm: VAG1332
Clamping Pliers: VAG1682A
Tripod Joint Tool: T10065

Fig 12: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Hose Clip Pliers: VAG1275A
Torque Wrench 1331 5-50Nm: VAG1331
Torque Wrench 1332 40-200Nm: VAG1332
Clamping Pliers: VAG1682A
Tripod Joint Tool: T10065

Special tools and workshop equipment required

Locating Pins: T10096

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket AF 24 mm: T10361A

Fig 13: Identifying Socket AF 24 mm T10361A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Drive Axle: T10382

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

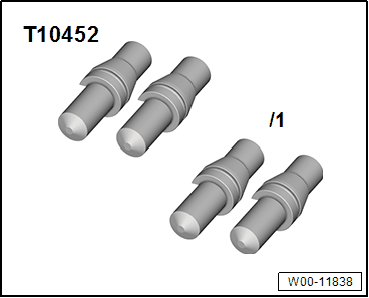

Subframe Locking Pin (2 pc.): T10452

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support: T10533

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer Set: VW771

Fig 14: Identifying Slide Hammer Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
