Overview - SUBFRAME Brace

WARNING: This page is about a different variant/trim than selected.

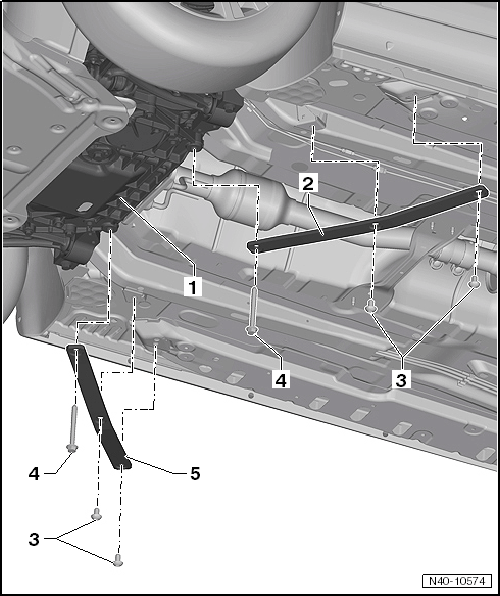

Fig 1: Identifying Subframe Brace Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe
Left Subframe Brace
- Removing and installing . Refer to SUBFRAME BRACE, REMOVING AND INSTALLING
Bolt
- 90 Nm +45°
- Replace after removing .
  NOTE:
  Tighten the bolts on the subframe brace only when the vehicle is resting on its wheels.
Bolt
- 70 Nm +180°
- Replace after removing .
- Allocation. Refer to the Parts Information.
Right Subframe Brace
- Removing and installing . Refer to SUBFRAME BRACE, REMOVING AND INSTALLING
