Lower Control Arm Bonded Rubber Bushing, Replacing, Rear Bonded Rubber Bushing

Special tools and workshop equipment required

• Bearing Installer - Front Wheel Bearing:2039
• Front Subframe Mount Kit:3372
• Press Plate: VW401
• Press Piece - Rod: VW407
• Press Piece - Multiple Use: VW412
• Hydraulic Press - Bushing Assembly Tool Kit : T10230
• Press Piece - Rear Track Control Arm: T10453

-- Remove the control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING, BASIC .

-- Remove the control arm (left side of the vehicle with DSG^® or automatic transmission). Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING, LEFT SIDE OF VEHICLE WITH DSG .

Bonded Rubber Bushing, Pressing Out

-- Press out the bonded rubber bushings as shown.

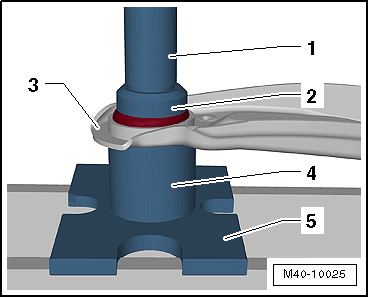

Fig 1: Pressing Out Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. : VW407
2. : T10230/8
3. Control arm - the opening in the control arm must face upward
4. :2039
5. : VW402

Installation Position for the Rear Bearing in the Control Arm

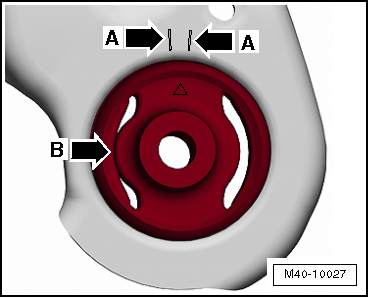

Fig 2: Identifying Control Arm Markings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

One of the stamped arrows points between the markings -A arrows- in the control arm.

The cam -arrow B- must always point to the outside of the vehicle.

Bonded Rubber Bushing, Pressing In

-- Install the bonded rubber bushing as shown.

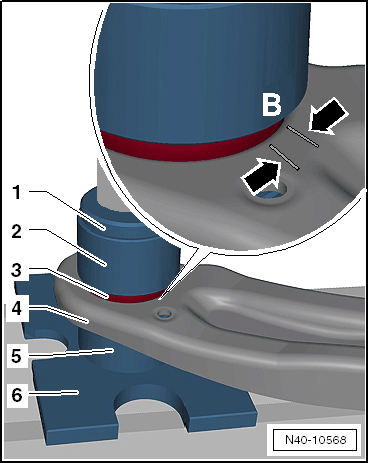

Fig 3: Identifying Thrust Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. : VW412
2. : T10453  - the -B- on the thrust piece must face the markings -arrows- on the control arm.
3. Bonded Rubber Bushing
4. Control arm - the opening in the control arm must face downward
5. :3372
6. : VW402

-- Install the control arm. Refer to Installing .

-- Install the control arm (left side of the vehicle with DSG^® or automatic transmission). Refer to Installing .
