Wheel Bearing Seal, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove wheel.

-- Remove ABS wheel speed sensor from wheel bearing housing.

-- Remove the wheel bearing unit. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .

-- Remove the wheel bearing seal -1- from the wheel bearing housing -2-.

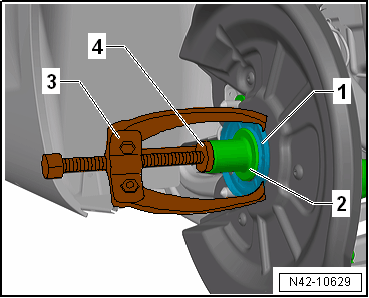

Fig 1: Identifying Puller

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

3 - Three-Arm Puller:45-2

4 - Press Piece - Output Shaft Gear/Final Drive Gear:3002

NOTE:

Make sure no parts fall down when removing.
