Wheel Bearing Seal, Removing And Installing: Installing

-- Align the hole on the wheel bearing seal -1- with the hole on the speed sensor in the wheel bearing housing -2-.

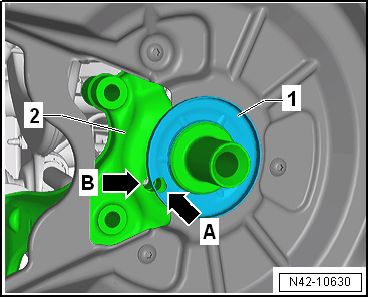

Fig 1: Identifying Wheel Bearing Seal And Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The hole on the wheel bearing seal -arrow A- must align with the hole for the speed sensor -arrow B-.

-- Drive the wheel bearing seal -1- on the wheel bearing housing -2-.

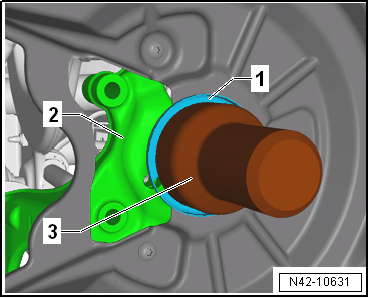

Fig 2: Identifying Wheel Bearing Seal, Housing And Thrust Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

3 -

: T10298

-- Install the wheel bearing unit. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .

-- Install the brake rotor and brake carrier with the brake caliper. Refer to OVERVIEW - REAR BRAKES .

-- Install ABS speed sensor.

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
