Fender, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

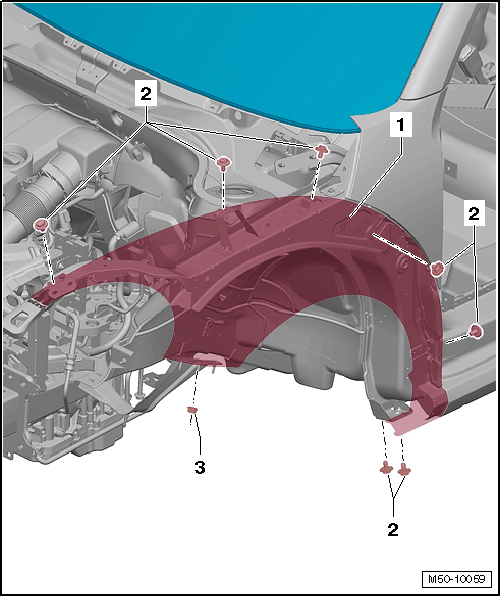

Fig 1: Identifying Front Fender, Bolts And Nut
GWWM50-10059Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The installation of the front fender -1- is the reverse order of removal.

-- Note the parallel alignment and gap dimensions. Refer to Body Gap Dimensions; Body Front .
