Starter, Removing And Installing, Vehicles With Automatic Transmission: Removing

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the ground cable to the Battery -A- when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the noise insulation. Refer to NOISE INSULATION (CONVERTIBLE) / NOISE INSULATION, REMOVING AND INSTALLING (CONVERTIBLE) .

-- If equipped, release and disconnect the connectors -arrows-.

Fig 1: Identifying Starter Connector

GWWN27-10340

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -2-.

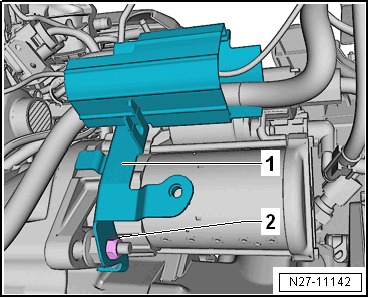

Fig 2: Removing Starter Bracket

GWWN27-11142

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- for the wiring harness.

-- Remove the bolt -1-.

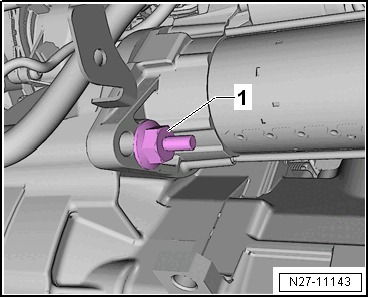

Fig 3: Removing Starter Bolt

GWWN27-11143

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with 1.8L Gasoline Engine

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING [DDSA, DDSB] (CONVERTIBLE) or AIR FILTER HOUSING, REMOVING AND INSTALLING [CPLA, CPPA, CPKA, CPRA] (CONVERTIBLE) .

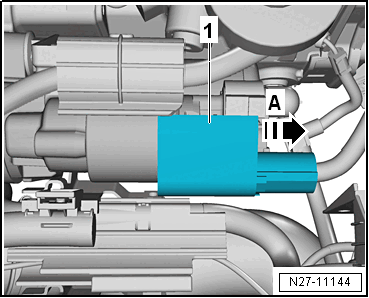

Fig 4: Sliding Starter Cap

GWWN27-11144

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the cap -1- in the direction of the -arrow A-.

-- Release and disconnect the connector -1-.

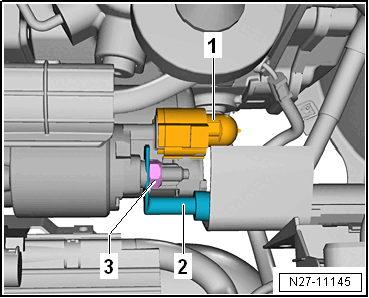

Fig 5: Removing Terminal & Nuts

GWWN27-11145

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -3- and remove terminal 30/B+ -2-.

-- Remove the nut -2-.

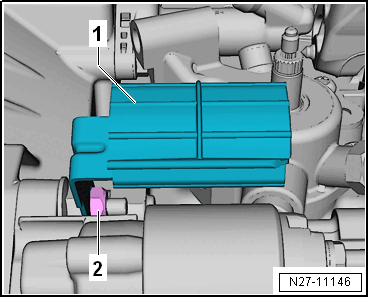

Fig 6: Removing Bracket & Bolt

GWWN27-11146

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- for the wiring harness.

-- Remove the bolt -1-.

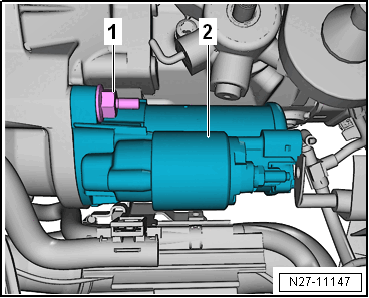

Fig 7: Removing Starter

GWWN27-11147

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Starter -B- -2- upward out of the vehicle.
