Overview - Starter, Vehicles With Automatic Transmission

WARNING: This page is about a different variant/trim than selected.

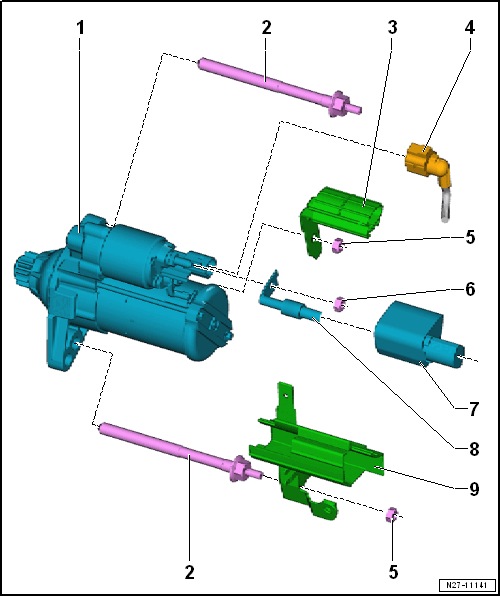

Fig 1: Exploded View Of Starter, Vehicles With 1.8L Gasoline Engine And Automatic Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Starter -B-
- Checking. Refer to STARTER, CHECKING .
- Removing and Installing. Refer to STARTER, REMOVING AND INSTALLING, VEHICLES WITH AUTOMATIC TRANSMISSION .
Bolt
- 80 Nm
- Quantity: 2
Bracket
- For the wiring harness
Connector
Nut
- 20 Nm
- Quantity: 2
Nut
- 20 Nm
Cap
30/B+ Terminal
Bracket
- For the wiring harness
