Sill Panel, Removing And Installing: Removing

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

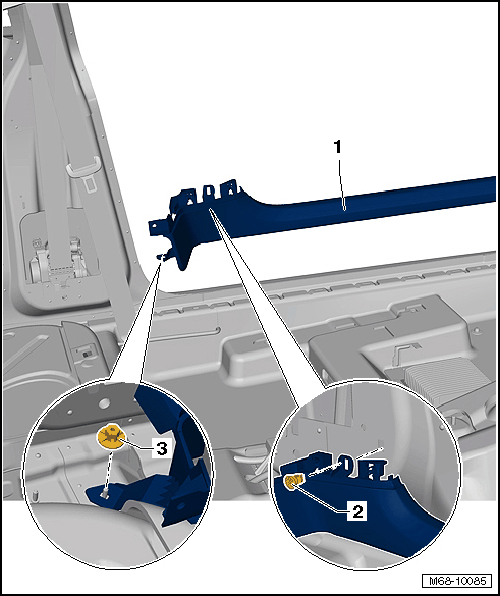

Fig 1: Identifying Sill Panel Strip, Expanding Rivet And Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expanding rivet -2-.

-- Remove the nut -3-.

-- Remove the sill panel -1- from the side sill and from the molding.
