Overview - Side Trim Panel, Sedan

WARNING: This page is about a different variant/trim than selected.

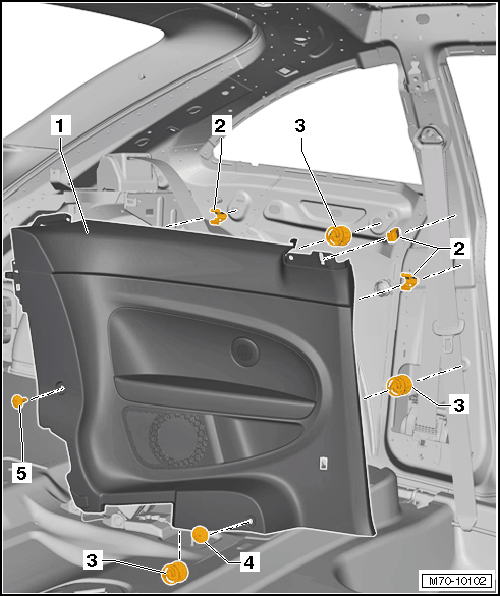

Fig 1: Identifying Side Trim Panel Components Overview (Sedan)
GWWM70-10102Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Side Trim Panel
  2. Clip
  3. Clip
  4. Clip
  5. Bolt
    • 3.5 Nm
