Overview - Side Trim Panel, Convertible

WARNING: This page is about a different variant/trim than selected.

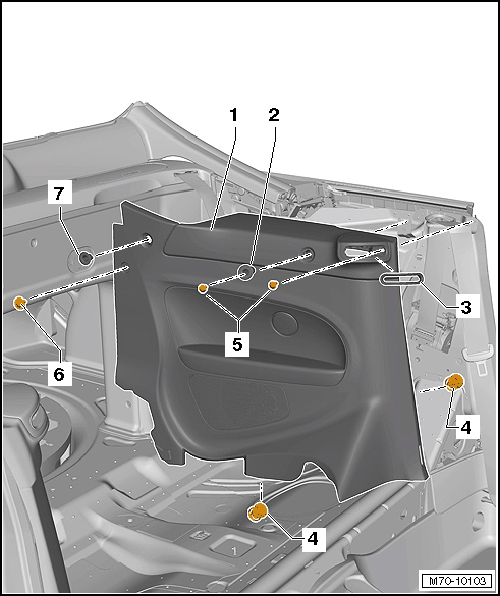

Fig 1: Identifying Side Trim Panel Components Overview (Convertible)
GWWM70-10103Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Side Trim Panel
  2. Front Mount
    • For the wind deflector
  3. Trim
    • For the seat belt
  4. Clip
  5. Bolt
    • 2 Nm
  6. Bolt
    • 2 Nm
  7. Rear Mount
    • For the wind deflector
