Carpet, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front seats. Refer to FRONT SEATS .

-- Remove the rear bench seat. Refer to REAR SEATS .

-- Remove the A-pillar lower trim panels. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the front belt end fittings. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the footrest.

If equipped, remove the rear air duct. Refer to AIR DUCT .

-- Remove the steering wheel cover.

-- Remove the accelerator pedal module.

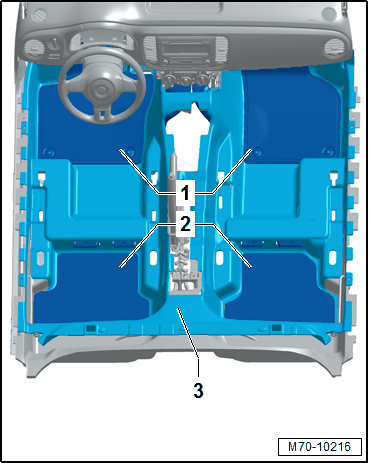

-- Remove the floor mats -1 and 2-.

-- Lift the rear carpet -3- and pull rearward.

-- Fold the carpet together and remove it through the front door.
