C-Pillar Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

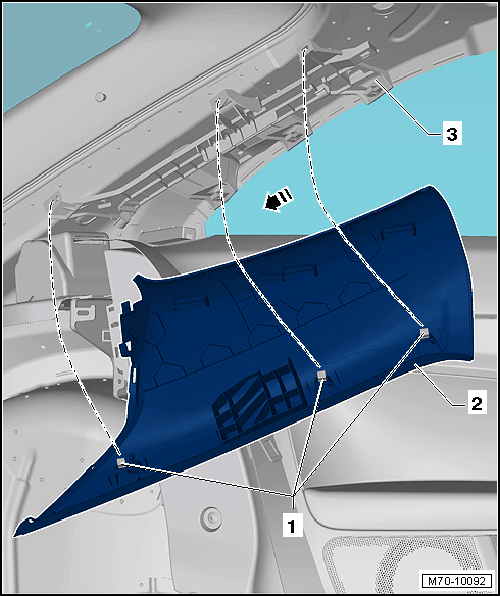

Fig 1: Identifying Inner Trim Panel And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side luggage compartment cover supports. Refer to REAR SHELF COMPARTMENT, REMOVING AND INSTALLING .

-- Loosen the clips -1- in the trim -2- from the mounts in the direction of the -arrow-.

-- Remove the inner trim panel -2- from the bracket -3-.
