B-Pillar Trim, Detaching And Attaching

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Loosening

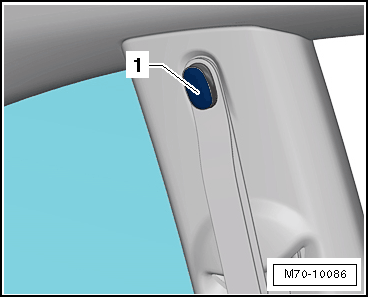

-- Remove the cover -1- with the : 3409 .

Fig 1: Identifying Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

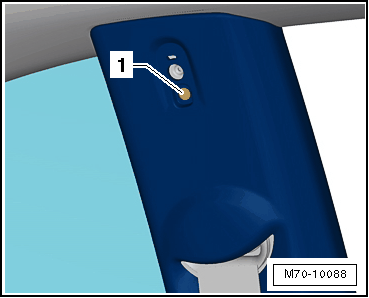

-- Remove the bolt -1-.

Fig 2: Identifying Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

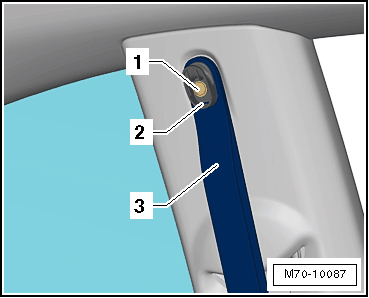

-- Remove the cap -2- and remove the retaining loop -3-.

-- Remove the bolt -1-.

Fig 3: Identifying Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the trim panel from the door seal molding.

Fig 4: Identifying B-Pillar Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

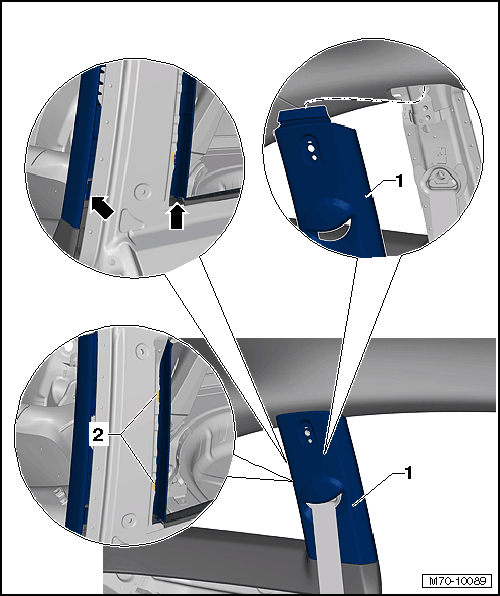

-- Remove the trim panel -1- from the side trim panel -arrows-.

-- Remove the trim panel -1- from the side B-pillar mounting -2-.

-- Remove the trim panel -1- from the upper mount.

Securing

NOTE:

Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

Make sure that the trim panel is inside the door seal molding after installing.

-- Install in reverse order of removal.

Tightening Specifications

Component	Tightening Specification
Bolt for retaining loop	2 Nm
Bolt for B-pillar trim	2 Nm
