Overview - Roof Frame Trim

WARNING: This page is about a different variant/trim than selected.

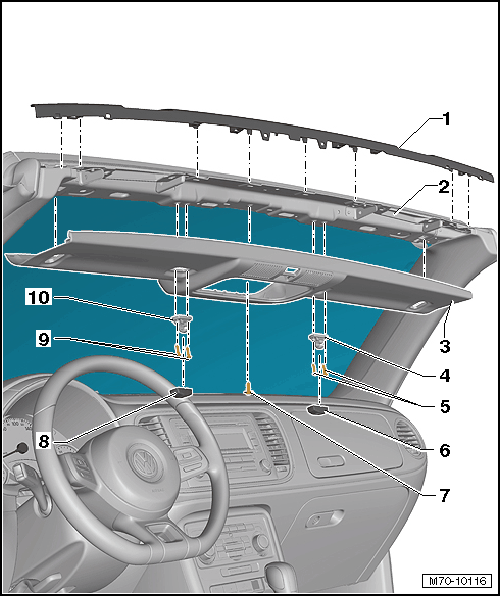

Fig 1: Identifying Roof Frame Trim Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upper Roof Frame Trim
- Removing and Installing. Refer to ROOF FRAME TRIM, REMOVING AND INSTALLING AND UPPER ROOF FRAME TRIM, REMOVING AND INSTALLING .
Roof Frame
Lower Roof Frame Trim
- Removing and Installing. Refer to ROOF FRAME TRIM, REMOVING AND INSTALLING AND LOWER ROOF FRAME TRIM, REMOVING AND INSTALLING .
Right Sun Visor Center Support
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Cap
- For the right sun visor center support
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Cap
- For the left sun visor center support
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Left Sun Visor Center Support
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
