Rear Shelf Compartment, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition.

-- Remove the luggage compartment cover. Refer to REAR SHELF, REMOVING AND INSTALLING .

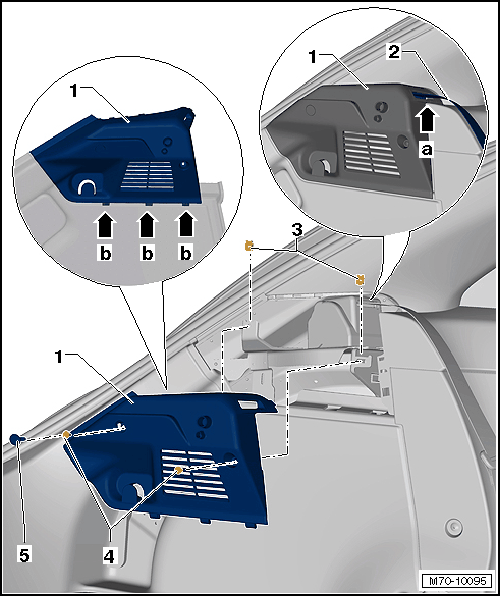

Fig 1: Identifying Cap, Seat Belt, Bolts And Storage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cap -5- from the storage compartment -1-.

-- Remove the bolts -4-.

-- Remove the storage compartment -1- upward and out of the guides -arrows b-.

-- Remove the seat belt -2- through the opening in the storage compartment -arrow a-.

-- Disconnect the wiring harnesses, if equipped.
