Rear Lid Upper Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

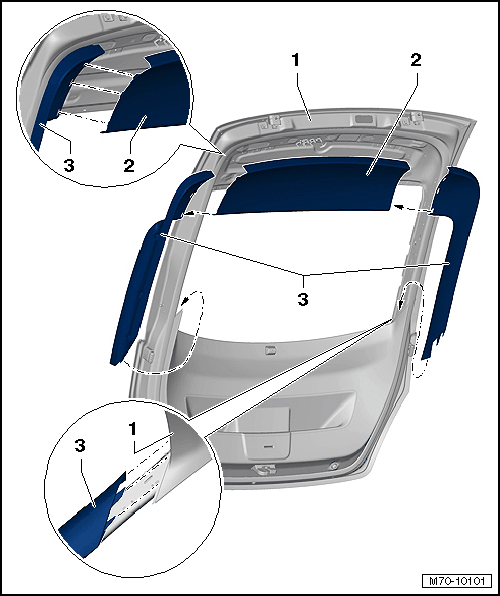

Fig 1: Identifying Rear Lid Upper Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim panel -2- with the : T10383 from the mounts in the rear lid and the side trim panels -3-.

-- Remove the side trim panel -3- from the retainers in the rear lid and in the rear lid trim panel -1-.
